NC7FD-L-1 | Neutrik
XLR panel socket, 7 pole, silver-plated, 1 mm², AWG 18, metal, NC7FD-L-1
Unit Price (€ / pc.)
19.9444 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
19.94 € *
Price list
Quantity
Price per unit*
1 pcs.
19.9444 €
10 pcs.
18.4688 €
25 pcs.
17.1955 €
50 pcs.
15.5771 €
*incl. VAT plus shipping costs
Subject to prior sale

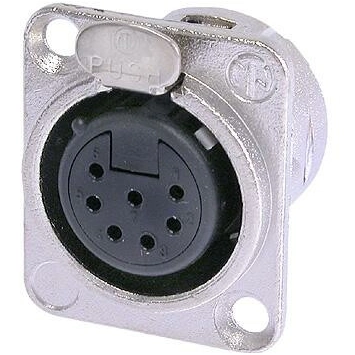

Chassis connector female, NC7FD-L-1, Neutrik
7 pole female receptacle, solder cups, Nickel housing, silver contacts. UL recognized component.
Features
- Robust "D" metal shell
- Standardized D sized 24 mm panel cutout
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | natural | |
| Pin number | 7 pole | |
| Enclosure | metal | |
| AWG cross-section | AWG 18 | |
| Type of locking | latch locking | |
| Rated voltage | 50 V | |
| Assembly | chassis mounting | |
| Contact connection | solder connection | |
| contact surface | silver-plated | |
| Version | panel socket | |
| Rated current | 5 A | |
| Cable cross-section | 1 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | HU |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
