NC3FD-S-1-B | Neutrik
XLR panel socket, 3 pole, gold-plated, 0.5-0.14 mm², AWG 26-20, metal, NC3FD-S-1-B
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
11.8405 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
11.84 € *
Price list
Quantity
Price per unit*
1 pcs.
11.8405 €
5 pcs.
11.2217 €
10 pcs.
10.4958 €
25 pcs.
9.5676 €
*incl. VAT plus shipping costs
Subject to prior sale

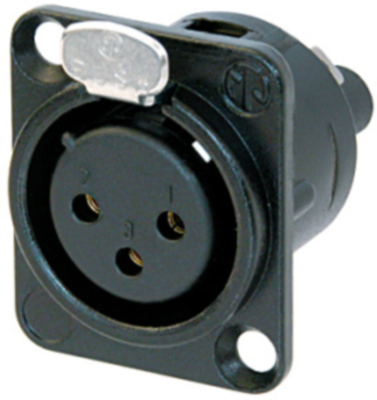

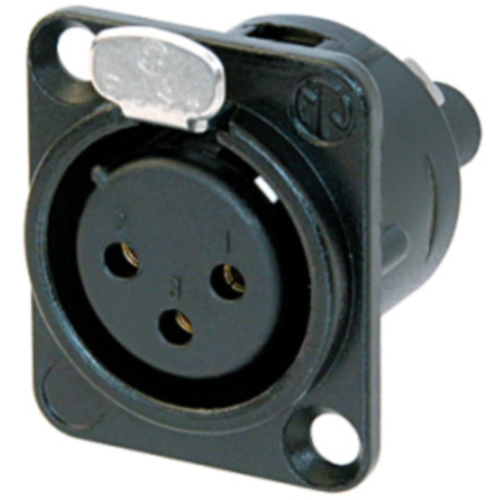

XLR receptacle, NC3FD-S-1-B, NEUTRIK
3 pole female receptacle, D-size metal body, screw terminals accommodating wire range 0.14 mm² to 0.5 mm² (AWG 26 -20), black metal housing, gold contacts.
Features
- Robust "D" metal shell
- Screw terminals
- Standardized D sized 24 mm panel cutout
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | panel socket | |
| Pin number | 3 pole | |
| Type of locking | snap lock | |
| Contact connection | solder connection | |
| Enclosure | metal | |
| Colour | black | |
| contact surface | gold-plated | |
| Assembly | PCB mounting | |
| Cable cross-section | 0.5-0.14 mm² | |
| AWG cross-section | AWG 26-20 | |
| Rated voltage | 50 V | |
| Rated current | 3 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | LI |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
