NC6MD-LX | Neutrik
XLR panel plug, 6 pole, silver-plated, 1.0 mm², AWG 18, zinc die casting, NC6MD-LX
Unit Price (€ / pc.)
26.5013 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
26.50 € *
Price list
Quantity
Price per unit*
1 pcs.
26.5013 €
5 pcs.
24.6449 €
10 pcs.
22.6695 €
25 pcs.
20.6346 €
*incl. VAT plus shipping costs
**Subject to prior sale

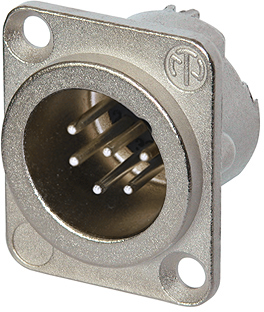

Chassis plug connector, NC6MD-LX, Neutrik
6 pole male receptacle, solder cups, nickel housing, silver contacts. This product features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding.
Features
- Male connector's retention bar replaces plastic design with all metal version improving pull-out force
- Duplex ground contact for excellent contact integrity between chassis and cable connector
- Larger solder contacts for easier termination
- D-style housing provides installation compatibility with industry standard D mounting dimensions
Technical specifications
| Version | Einbaustecker | |
| AWG cross-section | AWG 18 | |
| Enclosure | Zinkdruckguss | |
| Contact connection | Lötanschluss | |
| contact surface | versilbert | |
| Cable cross-section | 1,0 mm² | |
| Assembly | Chassismontage | |
| Rated voltage | 50 V | |
| Rated current | 7.5 A | |
| Pin number | 6-polig | |
| Type of locking | Riegelverriegelung |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
