NC5MD-LX | Neutrik

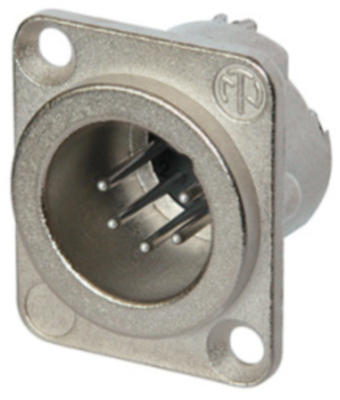

XLR panel plug, 5 pole, silver-plated, 1.0 mm², AWG 18, metal, NC5MD-LX

Order No.: 80F5164
EAN: 4099889858914
MPN:
NC5MD-LX
Series: DLX
NC5MD-LX Neutrik XLR Connectors
Image may differ
Unit Price (€ / pc.)
9.1511 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
9.15 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
9.1511 €

XLR plug, NC5MD-LX, NEUTRIK

5 pole male receptacle, solder cups, Nickel housing, silver contacts.

Features

  • All metal housing offers best overall RF protection and electromagnetic shielding
  • Male connector's retention bar replaces plastic design with all metal version improving pull-out force
  • Optional connection to easily join pin1 to chassis ground
  • Duplex ground contact for excellent contact integrity between chassis and cable connector
  • Larger solder contacts for easier termination
  • D-style housing provides installation compatibility with industry standard D mounting dimensions
Technical specifications
Rated voltage 50 V
AWG cross-section AWG 18
Cable cross-section 1.0 mm²
Type of locking snap lock
contact surface silver-plated
Pin number 5 pole
Assembly PCB mounting
Enclosure metal
Version panel plug
Rated current 7.5 A
Contact connection solder connection
Logistics
Country of origin LI
Customs tariff number 85366990
Compliance
SVHC free No
Date of RoHS guidelines 3/31/15
Substance description Lead
RoHS conform Yes
