NC5FXX-BAG | Neutrik

XLR jack, 5 pole, silver-plated, 1.0 mm², AWG 18, metal, NC5FXX-BAG

Order No.: 80F5154
EAN: 4099889858815
MPN:
NC5FXX-BAG
Series: XX
NC5FXX-BAG Neutrik XLR Connectors
Image may differ
Unit Price (€ / pc.)
10.2816 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
1,028.16 € *
*incl. VAT plus shipping costs
**Subject to prior sale
100 pcs.
10.2816 €

XLR cable connector, NC5FXX-BAG, NEUTRIK

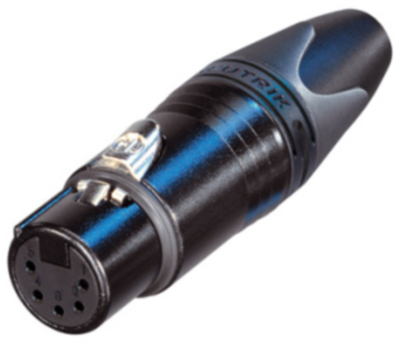

5 pole female cable connector with black metal housing and silver contacts.

Features

  • Unique cage design of female contact for low contact resistance and high integrity
  • Female connector with improved solid metal latch which is larger and easier to handle
  • Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
  • Boot with polyurethane gland gives high protection to cable bending stresses
  • Sleek and ergonomic design - valuable and handy
  • Internal thread on shell is well protected against any damage
Technical specifications
Version jack
Pin number 5 pole
Type of locking snap lock
Contact connection solder connection
Enclosure metal
Colour black
contact surface silver-plated
Assembly cable assembly
Cable cross-section 1.0 mm²
AWG cross-section AWG 18
Cable diameter 3.5-8 mm
Rated voltage 50 V
Rated current 7.5 A
Logistics
Country of origin LI
Customs tariff number 85366990
Compliance
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
Substance description Lead
