NC5FP-B-1 | Neutrik
XLR panel socket, 5 pole, gold-plated, 1.0 mm², AWG 18, metal, NC5FP-B-1
Unit Price (€ / pc.)
17.0646 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
17.06 € *
Price list
Quantity
Price per unit*
1 pcs.
17.0646 €
10 pcs.
15.8032 €
25 pcs.
14.7084 €
50 pcs.
13.3280 €
*incl. VAT plus shipping costs
Subject to prior sale

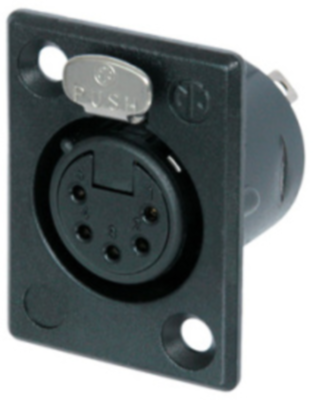

XLR receptacle, NC5FP-B-1, NEUTRIK
5 pole female receptacle, solder contacts, black metal housing, gold contacts.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Type of locking | snap lock | |
| Rated current | 7.5 A | |
| Version | panel socket | |
| Contact connection | solder connection | |
| Colour | black | |
| Rated voltage | 50 V | |
| Pin number | 5 pole | |
| contact surface | gold-plated | |
| AWG cross-section | AWG 18 | |
| Assembly | PCB mounting | |
| Enclosure | metal | |
| Cable cross-section | 1.0 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | LI |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
