NC3MD-LX-M3 | Neutrik
XLR panel plug, 3 pole, silver-plated, 2.5 mm², AWG 14, zinc die casting, NC3MD-LX-M3
Unit Price (€ / pc.)
4.9266 € *
Standard delivery time from the manufacturer is: 1 Week

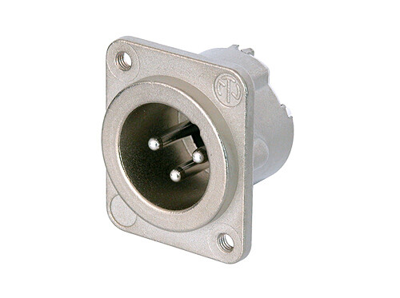

XLR-Chassis connector male, NC3MD-LX-M3, Neutrik
3 pole male receptacle, solder cups, Nickel housing, silver contacts, M3 mounting holes. It is the ideal match for mating with Neutrik's EMC XLR cable connector.
Features
- All metal housing offers best overall RF protection and electromagnetic shielding
- Male connector's retention bar replaces plastic design with all metal version improving pull-out force
- Duplex ground contact for excellent contact integrity between chassis and cable connector
- Larger solder contacts for easier termination
- D-style housing provides installation compatibility with industry standard D mounting dimensions
Technical specifications
| Rated voltage | 50 V | |
| AWG cross-section | AWG 14 | |
| Cable cross-section | 2.5 mm² | |
| Type of locking | latch locking | |
| contact surface | silver-plated | |
| Pin number | 3 pole | |
| Assembly | chassis mounting | |
| Enclosure | zinc die casting | |
| Version | panel plug | |
| Rated current | 16 A | |
| Contact connection | solder connection |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85366990 |
Compliance
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
