NC3FD-LX | Neutrik
XLR panel socket, 3 pole, silver-plated, 2.5 mm², AWG 14, metal, NC3FD-LX
Unit Price (€ / pc.)
6.1166 € *
Available: 42 pcs.
Total Price:
6.12 € *
Price list
Quantity
Price per unit*
1 pcs.
6.1166 €
10 pcs.
5.6644 €
25 pcs.
5.2717 €
50 pcs.
4.7838 €
*incl. VAT plus shipping costs
Subject to prior sale

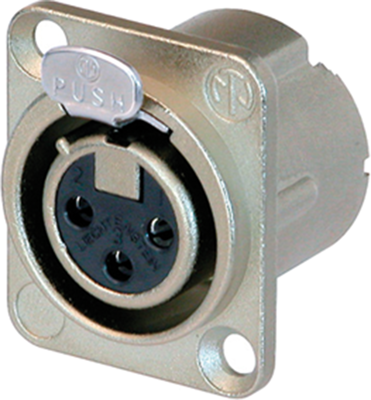

Female receptacle, NC3FD-LX, Neutrik
3 pole female receptacle, solder cups, Nickel housing, silver contacts. This product features a compact all-metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding. It is the ideal match for mating with Neutrik's EMC XLR cable connector.
Features
- All metal housing offers best overall RF protection and electromagnetic shielding
- Larger solder contacts for easier termination
- D-style housing provides installation compatibility with industry standard D mounting dimensions
- Duplex ground contact for excellent contact integrity between chassis and cable connector
- Female contact incorporates a solder barrier to prevent solder running into the contact mating area
- Optional connection to easily join pin1 to chassis ground
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 3 pole | |
| Enclosure | metal | |
| AWG cross-section | AWG 14 | |
| Type of locking | snap lock | |
| Rated voltage | 50 V | |
| Assembly | PCB mounting | |
| Contact connection | solder connection | |
| contact surface | silver-plated | |
| Version | panel socket | |
| Rated current | 16 A | |
| Cable cross-section | 2.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | LI |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
