NC3FD-LX-HA | Neutrik
XLR panel socket, 3 pole, silver-plated, 0.22-0.34 mm², AWG 24-22, zinc die casting, NC3FD-LX-HA
Unit Price (€ / pc.)
11.8286 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
11.83 € *
Price list
Quantity
Price per unit*
1 pcs.
11.8286 €
10 pcs.
10.9956 €
50 pcs.
10.1150 €
100 pcs.
9.2106 €
*incl. VAT plus shipping costs
**Subject to prior sale

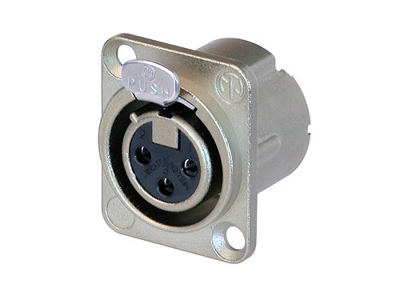

XLR-Chassis connector female, NC3FD-LX-HA, Neutrik
3 pole female receptacle, crimp termination (Standard B-Crimp), Nickel housing, silver contacts.
Features
- All metal housing offers best overall RF protection and electromagnetic shielding
- Gastight and Solderless connection (RoHS compliant)
- Unique cage type female contact on 3 pole version increases conductivity and reduces wear on the mated male contact
- D-style housing provides installation compatibility with industry standard D mounting dimensions
- Crimp termination with standard B-crimp tool (B-crimp acc. IEC 60352-2)
- New duplex ground contact for excellent contact integrity between chassis and cable connector
Technical specifications
| Version | Einbaubuchse | |
| AWG cross-section | AWG 24-22 | |
| Enclosure | Zinkdruckguss | |
| Contact connection | Crimpanschluss | |
| contact surface | versilbert | |
| Cable cross-section | 0,22-0,34 mm² | |
| Assembly | Chassismontage | |
| Rated voltage | 50 V | |
| Rated current | 1 A | |
| Pin number | 3-polig | |
| Type of locking | Riegelverriegelung |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
