NC3FAH-0 | Neutrik

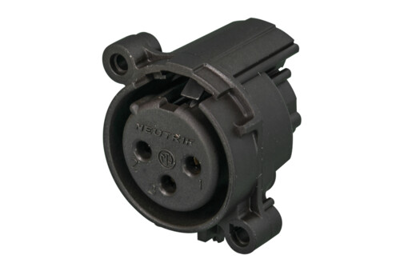

XLR panel socket, 3 pole, gold-plated, plastic, NC3FAH-0
Unit Price (€ / pc.)
0.9877 € *
Standard delivery time from the manufacturer is: 1 Week
XLR-Chassis connector female, NC3FAH-0, Neutrik
3 pole female XLR receptacle, grounding: without ground/shell contact, horizontal PCB mount, Retention spring instead of latch. The `State of the Art` receptacle. Round plastic body XLR PCB mount panel connector. These have the smallest size and highest packing density (23mm between centres). New designed tulip type contacts with hard gold plating and polished contact areas. UL recognized component.
Features
- Smallest XLR receptacles, highest packing density
- Tulip type female contact
- Housing flammability UL94V-0
- Plastic housing, steel retention spring
Technical specifications
| Rated voltage | 50 V | |
| Type of locking | retaining spring | |
| contact surface | gold-plated | |
| Pin number | 3 pole | |
| Assembly | PCB mounting | |
| Enclosure | plastic | |
| Colour | black | |
| Version | panel socket | |
| Rated current | 6 A | |
| Contact connection | solder pin |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85366990 |
Compliance
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
