NL4MPXX | Neutrik
Chassis connector NL4MPXX
Unit Price (€ / pc.)
3.0940 € *
Available: 33 pcs.
Total Price:
3.09 € *
Price list
Quantity
Price per unit*
1 pcs.
3.0940 €
10 pcs.
2.8560 €
50 pcs.
2.6537 €
100 pcs.
2.4038 €
*incl. VAT plus shipping costs
Subject to prior sale

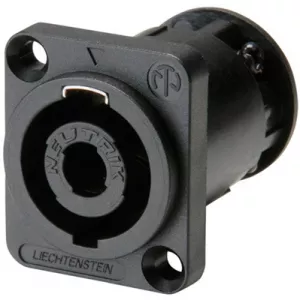

Chassis connector, NL4MPXX, Neutrik
4 pole chassis connector, black D-size flange, countersunk thru holes, 3/16" flat tabs. The speakON panel mount connector feature a unique metal locking system, making contact only once fully locked. The speakON receptacle is robust, versatile and easy to terminate.
Features
- Precise keyway for secure mating
- Metal insert in locking area
- Accurate twist lock latching system
- Airtight design - optimized for speaker applications
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | plug | |
| Pin number | 4 pole | |
| Contact connection | solder connection | |
| Type of locking | quick locking | |
| Assembly | panel mounting | |
| Rated voltage | 250 V | |
| Rated current | 25 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | LI |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
