NL4MPRXX | Neutrik
Chassis connector NL4MPRXX
Unit Price (€ / pc.)
3.2011 € *
Available: 0 pcs.
Leadtime: 4 Weeks **

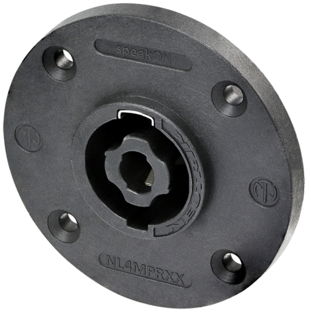

Chassis connector, NL4MPRXX, Neutrik
4 pole chassis connector, black round G-size flange, countersunk thru holes, 3/16" flat tabs. The speakON panel mount connector is the standard chassis connector for loudspeaker / amplifier interconnections. It features a unique metal locking system, making contact only once fully locked. The speakON receptacle is robust, versatile and easy to terminate.
Features
- Precise keyway for secure mating
- Metal insert in locking area
- Accurate twist lock latching system
Technical specifications
| Version | plug | |
| Contact connection | solder connection | |
| Assembly | panel mounting | |
| Rated voltage | 250 V | |
| Rated current | 25 A | |
| Pin number | 4 pole | |
| Type of locking | quick locking |
Download
Logistics
| Country of origin | LI |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
