MPF12-H | Neutrik

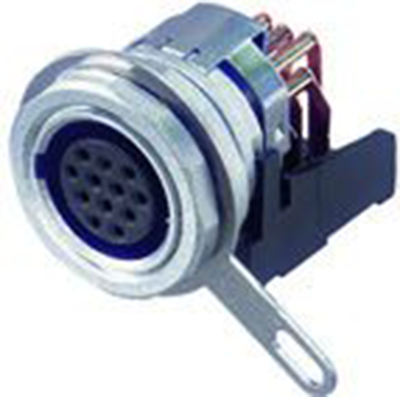

Panel socket, 12 pole, solder cup, push pull, angled, MPF12-H
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
27.1082 € *
Available: 23 pcs.
Total Price:
27.11 € *
Price list
Quantity
Price per unit*
1 pcs.
27.1082 €
2 pcs.
25.3589 €
5 pcs.
23.8238 €
10 pcs.
22.1459 €
*incl. VAT plus shipping costs
Subject to prior sale
Circular connector series MiniCon, type NEUTRIK M.
12-pole, with push-pull lock, gold-plated contacts; Rated current: 3.0 A. Rated voltage: 50 VAC. Contact resistance: max. 8.0 mohm. Dielectric strength: 1000 VDC. Insulation resistance: min. 0.5 Gohm. Conductor cross-section: 0.5 mm² (AWG 20). Operating temperatures: –30 to +80 °C.
For horizontal PCB mounting, type MP.
Type: MPF12–H, chassis socket
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | panel socket | |
| Cable cross-section | 0.5 mm² | |
| Pin number | 12 pole | |
| Orientation | angled | |
| Contact connection | solder cup | |
| Type of locking | push pull | |
| Assembly | PCB mounting | |
| Additional parts | equipped | |
| contact surface | gold-plated | |
| Shell Material | zinc die casting |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | LI |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
