NBNC75BZV14X | Neutrik
BNC plug 75 Ω, Belden 4794R, crimp connection, straight, NBNC75BZV14X
Order No.: 39F1436
EAN: 7613187012815
MPN:
NBNC75BZV14X
Unit Price (€ / pc.)
10.7100 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
10.71 € *
Price list
Quantity
Price per unit*
1 pcs.
10.7100 €
10 pcs.
9.9603 €
50 pcs.
9.1630 €
100 pcs.
8.3419 €
*incl. VAT plus shipping costs
**Subject to prior sale

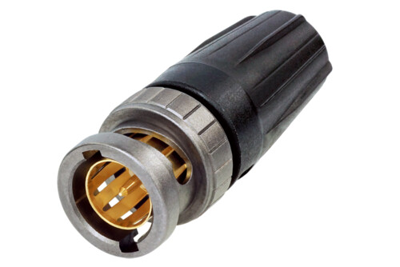

BNC cable connector, NBNC75BZV14X, Neutrik
The rearTWIST UHD BNC connector is specifically designed for high-resolution video signal transmission. Due to the unique insulator and contact pin design, the connector features a low return loss value for 4K and 8K signals.
Features
- Optimized contact pin and insulator design for UHD-data transmissions
- Swiss antraloy plating
- Improved return loss values at high frequencies
- Proven rearTWIST technology
- Fully compatible with conventional BNC chassis connectors
Technical specifications
| Impedance | 75 Ω | |
| Connector | BNC | |
| Cable Group | Belden 4794R | |
| Design | gerade | |
| Contact material | Messing | |
| Contact connection | Crimpanschluss | |
| Version | Stecker |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
