RF choke, PCB mounting, 9.5 nH, 06 9539 00

default S
default L
Total price
(1.65 € * / pcs.)
4.96 €
Available: 45 pcs.
Quantity
Price per unit*
3 pcs.
1.65 €
15 pcs.
1.49 €
75 pcs.
1.34 €
400 pcs.
1.26 €
800 pcs.
1.19 €
*incl. VAT plus shipping costs
Show 6 variants
Description

Product by Neosid at Bürklin Elektronik

RF inductor, 06 9539 00, NEOSID

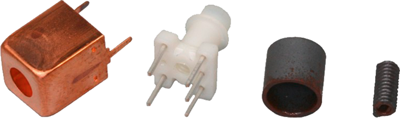

The 06 9539 00 is for frequencies, depending on the ferrite assembly, from 0.1 to 200 MHz, consisting of a dip-solderable coil former with 5 square solder pins, a threaded core with silicone rubber brake, a copper shield cup and a cap core. The coil can be balanced from the top as well as from the bottom. The overall height in the printed circuit board is 10 mm. The shielding cup can be omitted in certain cases if no unwanted coupling occurs. The AL values given are reference values for the approximate dimensioning of the winding.

Applications

  • Resonant circuits
  • Telecommunications
  • Transformers
  • Telemetry systems
Technical specifications
Version RF choke
Design PCB mounting
Quality Q Q 40/120
Height 9.8 mm
Inductance 0.0000095 mH
Length 7.5 mm
Show similar products (0)
Logistics
Country of origin DE
Customs tariff number 85045000
Compliance
Guidline date 3/31/15
RoHS confom Yes
SVHC date 1/16/20
SVHC free Yes
Variations
1 item with 6 variations
Item description
Price list
Total
Design
Version
Length
Tolerance
Height
Inductance
RF choke, PCB mounting, 9.5 nH, 06 9539 00
Order No.:
 79D102
Manufacturer:
 Neosid
Manufacturer SKU
 06 9539 00
3 pcs.
1.65 €
15 pcs.
1.49 €
75 pcs.
1.34 €
400 pcs.
1.26 €
800 pcs.
1.19 €
4.96 € *
Available: 45 pcs.
PCB mounting
RF choke
7.5 mm
9.8 mm
0.0000095 mH
RF choke, PCB mounting, 9.5 nH, 05 9539 00
Order No.:
 79D104
Manufacturer:
 Neosid
Manufacturer SKU
 05 9539 00
3 pcs.
1.63 €
15 pcs.
1.46 €
75 pcs.
1.33 €
400 pcs.
1.23 €
800 pcs.
1.17 €
4.89 € *
Available: 154 pcs.
PCB mounting
RF choke
7.5 mm
9.8 mm
0.0000095 mH
RF coil kit, PCB mounting, 5.5 µH, 15 9539 00
Order No.:
 79D110
Manufacturer:
 Neosid
Manufacturer SKU
 15 9539 00
200 pcs.
1.44 €
0.00 € *
Currently not in stock, we will order for you
PCB mounting
RF coil kit
7.5 mm
±5 %
9.8 mm
0.0055 mH
RF coil kit, PCB mounting, 8.5 nH, 03 9539 00
Order No.:
 79D106
Manufacturer:
 Neosid
Manufacturer SKU
 03 9539 00
200 pcs.
1.37 €
0.00 € *
Currently not in stock, we will order for you
PCB mounting
RF coil kit
7.5 mm
9.8 mm
0.0000085 mH
RF coil kit, PCB mounting, 6.5 nH, 02 9539 00
Order No.:
 79D108
Manufacturer:
 Neosid
Manufacturer SKU
 02 9539 00
200 pcs.
1.37 €
0.00 € *
Currently not in stock, we will order for you
PCB mounting
RF coil kit
7.5 mm
9.8 mm
0.0000065 mH
RF coil kit, PCB mounting, 10.5 nH, 11 9539 00
Order No.:
 79D100
Manufacturer:
 Neosid
Manufacturer SKU
 11 9539 00
200 pcs.
1.37 €
0.00 € *
Currently not in stock, we will order for you
PCB mounting
RF coil kit
7.5 mm
9.8 mm
0.0000105 mH
