05 9539 00 | Neosid
RF choke, PCB mounting, 9.5 nH, 05 9539 00
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
2.5228 € *
Available: 180 pcs.
Total Price:
2.52 € *
Price list
Quantity
Price per unit*
1 pcs.
2.5228 €
10 pcs.
1.8088 €
100 pcs.
1.5470 €
500 pcs.
1.3447 €
1000 pcs.
1.2257 €
*incl. VAT plus shipping costs
Subject to prior sale
RF inductor, 05 9539 00, NEOSID

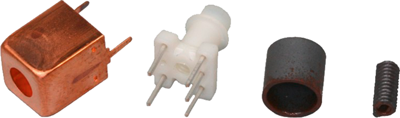

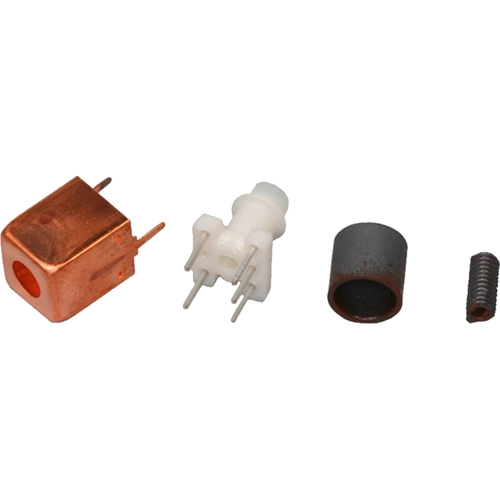

The 05 9539 00 is for frequencies, depending on the ferrite assembly, from 0.1 to 200 MHz, consisting of a dip-solderable coil former with 5 square solder pins, a threaded core with silicone rubber brake, a copper shield cup and a cap core. The coil can be balanced from the top as well as from the bottom. The overall height in the printed circuit board is 10 mm. The shielding cup can be omitted in certain cases if no unwanted coupling occurs. The AL values given are reference values for the approximate dimensioning of the winding.
Applications
- Resonant circuits
- Telecommunications
- Transformers
- Telemetry systems
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | RF choke | |
| Inductance | 9.5 nH | |
| Quality Q | Q 100/140 | |
| Design | PCB mounting | |
| Length | 7.5 mm | |
| Height | 9.8 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85045000 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
