00 6124 00 | Neosid

Suppressor choke, radial, 100 µH, 150 mA, 00 6124 00

Order No.: 75D6200
EAN: 4099889040777
MPN:
00 6124 00
Series: Bs75

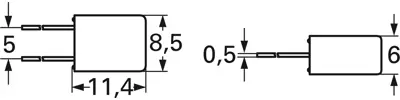

00 6124 00 Neosid Fixed Inductors Image 1

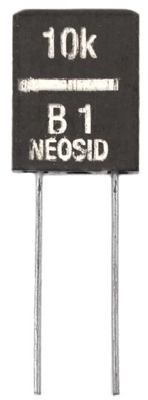

00 6124 00 Neosid Fixed Inductors Image 2
Image may differ

Discontinued

Unit Price (€ / pc.)
1.2733 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
2,546.60 € *
*incl. VAT plus shipping costs
Subject to prior sale
2000 pcs.
1.2733 €

Suppressor inductor, 00 6124 00, NEOSID

The 00 6124 00 is a fixed value choke inductor with or without a ferromagnetic core, used to block alternating current (AC) in a circuit by limiting the rate of change over a specified frequency range, while allowing passage of lower frequency AC or direct current (DC).

Features

  • Solderability as per DIN IEC 68-2-20 Ta

Applications

  • Decoupling of high and low frequency circuits
  • Telecommunications
  • Video equipment
  • Electronic data processing systems
Technical specifications
Version suppressor choke
Inductance 100 µH
DC current 150 mA
Tolerance ±5 %
DC resistance 1.2 Ω
Saturation current 150 mA
Measuring frequency 500 kHz
Quality Q Q 75
Design radial
Length 11.4 mm
Width 6 mm
Height 8.5 mm
Logistics
Country of origin DE
Customs tariff number 85045000
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
