83182082 | murrplastik
Cable protection conduit, inside Ø 88.2 mm, outside Ø 105.5 mm, BR 450 mm, PA, black, 83182082
Unit Price (€ / mtr.)
49.1827 € *
Standard delivery time from the manufacturer is: 1 Week

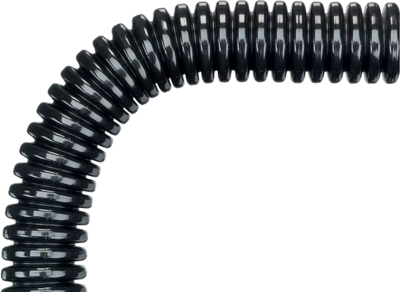

Cable protection conduit, 83182082, murrplastik
The EWX-PAE cable protection conduits are made of specially modified polyamide 12. The material is halogen, phosphor and cadmium-free. With its excellent flexural fatigue strength, this product is ideal for robotics engineering and in the area of handling systems. For extremely dynamic applications involving medium to high mechanical loads.
Features
- Very good flexibility
- Excellent flexural fatigue strength
- Less wear
- Good crush resistance

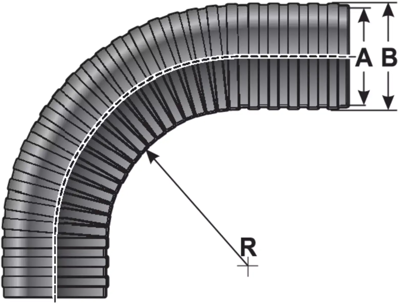

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | PA | |
| Inner diameter | 88.2 mm | |
| Colour | black | |
| max. operating temperature | 120 °C | |
| Nominal width | 95 mm | |
| Outer diameter | 105.5 mm | |
| min. operating temperature | -40 °C | |
| Bending radius | 450 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39173200 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
