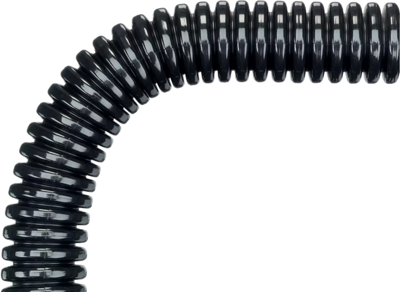

Cable protection conduit, inside Ø 23.1 mm, outside Ø 34.5 mm, BR 117 mm, PA, black, 83182060
Unit Price (€ / mtr.)
9.1273 € *
Standard delivery time from the manufacturer is: 1 Week
Cable protection conduit, 83182060, murrplastik
The EWX-PAE cable protection conduits are made of specially modified polyamide 12. The material is halogen, phosphor and cadmium-free. With its excellent flexural fatigue strength, this product is ideal for robotics engineering and in the area of handling systems. For extremely dynamic applications involving medium to high mechanical loads.
Features
- Very good flexibility
- Excellent flexural fatigue strength
- Less wear
- Good crush resistance
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Outer diameter | 34.5 mm | |
| max. operating temperature | 120 °C | |
| min. operating temperature | -40 °C | |

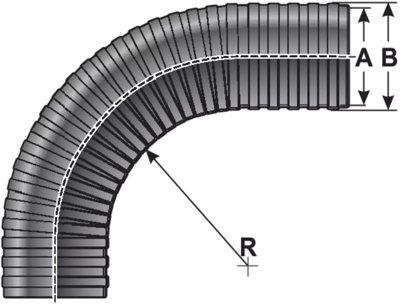

| Bending radius | 117 mm | |
| Material | PA | |
| Nominal width | 29 mm | |
| Inner diameter | 23.1 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 39173200 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
