83181666 | murrplastik

Protective hose, inside Ø 46.3 mm, outside Ø 53.9 mm, BR 102 mm, PA, black, 83181666

Order No.: 47P0358
EAN: 4045005056948
MPN:
83181666
EW-PAE M50/P48 SCHWARZ
Series: EW-PAE

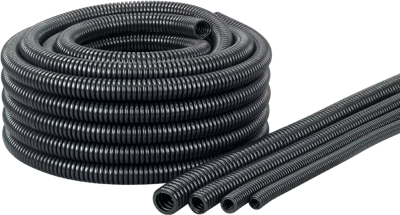

83181666 murrplastik Protective Tubes Image 1
83181666 murrplastik Protective Tubes Image 2
Image may differ
Unit Price (€ / mtr.)
17.1122 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
427.81 € *
*incl. VAT plus shipping costs
Subject to prior sale
25 mtr.
17.1122 €

Cable protective conduit, 83181666, murrplastik

The EW-PAE cable protection conduit is made of specially modified polyamide 12. The material is halogen, phosphor, and cadmium-free. The EW-PAE cable protection conduit is characterized by excellent flexibility, flexural fatigue strength, and good crush resistance. It is designed for extremely dynamic applications involving medium mechanical loads.

Applications

  • Robotics
  • Handling systems
  • In cable drag chains
Technical specifications
Filter Property Value
Material PA
max. operating temperature 120 °C
Nominal width 48 mm
Outer diameter 53.9 mm
min. operating temperature -40 °C
Inner diameter 46.3 mm
Bending radius 102 mm
Colour black
Logistics
Property Value
Country of origin DE
Customs tariff number 39173200
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
