83181664 | murrplastik

Protective hose, inside Ø 34.9 mm, outside Ø 42 mm, BR 81 mm, PA, black, 83181664

Order No.: 47P0357
EAN: 4045005154903
MPN:
83181664
EW-PAE M40/P36 SCHWARZ
Series: EW-PAE

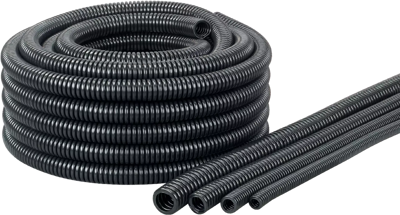

83181664 murrplastik Protective Tubes Image 1

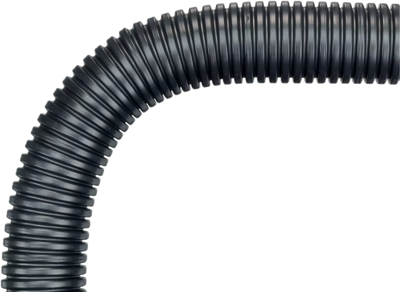

83181664 murrplastik Protective Tubes Image 2
Image may differ
Unit Price (€ / mtr.)
11.8167 € *
Available: 0 mtr.
Leadtime: 1 Week **
Total Price:
295.42 € *
*incl. VAT plus shipping costs
**Subject to prior sale
25 mtr.
11.8167 €

Cable protective conduit, 83181664, murrplastik

The EW-PAE cable protection conduit is made of specially modified polyamide 12. The material is halogen, phosphor, and cadmium-free. The EW-PAE cable protection conduit is characterized by excellent flexibility, flexural fatigue strength, and good crush resistance. It is designed for extremely dynamic applications involving medium mechanical loads.

Applications

  • Robotics
  • Handling systems
  • In cable drag chains
Technical specifications
Colour black
Outer diameter 42 mm
Bending radius 81 mm
min. operating temperature -40 °C
Material PA
max. operating temperature 120 °C
Inner diameter 34.9 mm
Nominal width 36 mm
Logistics
Country of origin DE
Customs tariff number 39173200
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
