83181624 | murrplastik

Protective hose, inside Ø 34.9 mm, outside Ø 42 mm, BR 81 mm, PA, gray, 83181624

Order No.: 47P0348
EAN: 4045005188328
MPN:
83181624
EW-PAE M40/P36 GRAU
Series: EW-PAE

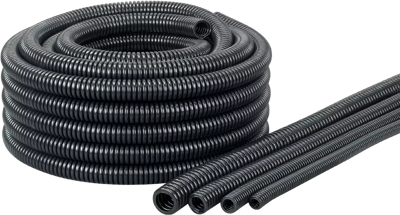

83181624 murrplastik Protective Tubes Image 1

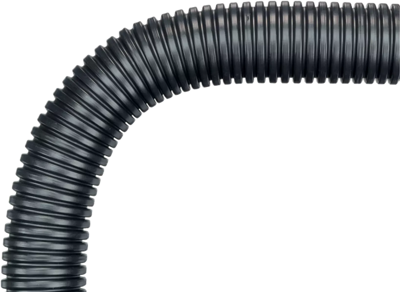

83181624 murrplastik Protective Tubes Image 2
Image may differ
Unit Price (€ / mtr.)
13.5898 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
339.75 € *
*incl. VAT plus shipping costs
Subject to prior sale
25 mtr.
13.5898 €

Cable protective conduit, 83181624, murrplastik

The EW-PAE cable protection conduit is made of specially modified polyamide 12. The material is halogen, phosphor, and cadmium-free. The EW-PAE cable protection conduit is characterized by excellent flexibility, flexural fatigue strength, and good crush resistance. It is designed for extremely dynamic applications involving medium mechanical loads.

Applications

  • Robotics
  • Handling systems
  • In cable drag chains
Technical specifications
Filter Property Value
Material PA
max. operating temperature 120 °C
Nominal width 36 mm
Outer diameter 42 mm
min. operating temperature -40 °C
Inner diameter 34.9 mm
Bending radius 81 mm
Colour gray
Logistics
Property Value
Country of origin DE
Customs tariff number 39173200
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
