83181612 | murrplastik

Protective hose, inside Ø 8.5 mm, outside Ø 11.5 mm, BR 20 mm, PA, gray, 83181612

Order No.: 47P0343
EAN: 4045005309297
MPN:
83181612
EW-PAE M10/P07 GRAU
Series: EW-PAE

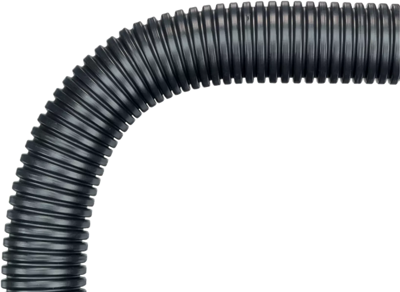

83181612 murrplastik Protective Tubes Image 1

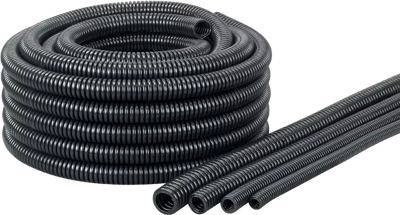

83181612 murrplastik Protective Tubes Image 2
Image may differ
Unit Price (€ / mtr.)
2.2134 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
110.67 € *
*incl. VAT plus shipping costs
Subject to prior sale
50 mtr.
2.2134 €

Cable protective conduit, 83181612, murrplastik

The EW-PAE cable protection conduit is made of specially modified polyamide 12. The material is halogen, phosphor, and cadmium-free. The EW-PAE cable protection conduit is characterized by excellent flexibility, flexural fatigue strength, and good crush resistance. It is designed for extremely dynamic applications involving medium mechanical loads.

Applications

  • Robotics
  • Handling systems
  • In cable drag chains
Technical specifications
Filter Property Value
Material PA
max. operating temperature 120 °C
Nominal width 7 mm
Outer diameter 11.5 mm
min. operating temperature -40 °C
Inner diameter 8.5 mm
Bending radius 20 mm
Colour gray
Logistics
Property Value
Country of origin DE
Customs tariff number 39173200
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
