83164664 | murrplastik
Protective hose, inside Ø 44 mm, outside Ø 54.8 mm, BR 240 mm, PA, black, 83164664
Order No.: 47P0440
EAN: 4045005231536
MPN:
83164664
EWT-PAB M50/P48 SCHWARZ
Series: EWT-PAB split-flex
Unit Price (€ / mtr.)
21.9912 € *
Standard delivery time from the manufacturer is: 1 Week

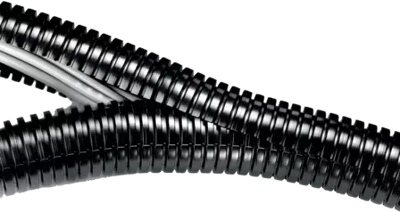

Cable protection conduit, 83164664, murrplastik
The cable protection conduit is made of specially modified polyamide 6. The material is halogen-, phosphor-, and cadmium-free. Due to its excellent fire protection properties and very low smoke emission, this product can be used in railway technology and for static applications with medium to high mechanical stress.
Features
- The cable protection conduits can be opened and closed again at any time
- Mounting of pre-assembled cables
- Retrofitting or repair in mechanical and plant engineering
Technical specifications
| Colour | black | |
| Outer diameter | 54.8 mm | |
| Bending radius | 240 mm | |
| min. operating temperature | -40 °C | |
| Material | PA | |
| max. operating temperature | 120 °C | |
| Inner diameter | 44 mm | |
| Nominal width | 48 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39173200 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
