Protective hose, inside Ø 8.55 mm, outside Ø 11.5 mm, BR 20 mm, PA, gray, 83164180

Order No.: 47P0404
EAN: 4045005384218
MPN:
83164180
EWL-PAB M10/P07 GRAU
Series: EWL-PAB
83164180 murrplastik Protective Tubes Image 1
83164180 murrplastik Protective Tubes Image 2
83164180 murrplastik Protective Tubes Image 3
Image may differ
Unit Price (€ / mtr.)
1.1424 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
114.24 € *
*incl. VAT plus shipping costs
Subject to prior sale
100 mtr.
1.1424 €

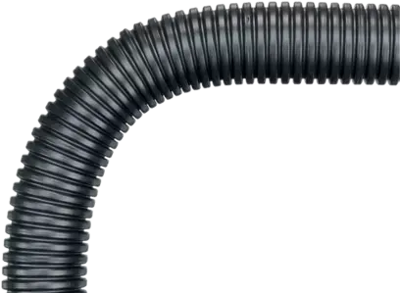

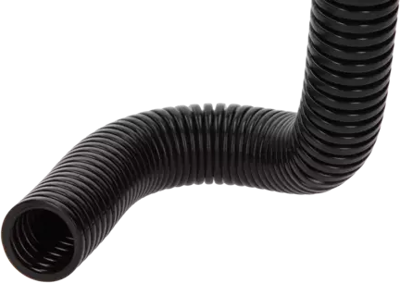

Cable protection conduit, 83164180, murrplastik

The cable protection conduit is made of specially modified polyamide 6. The material is halogen-, phosphor-, and cadmium-free. The affordable EWL-PAB cable protection conduit is characterised by its excellent self-extinguishing properties and high crush and impact resistance.

Applications

  • Plant engineering
  • Mechanical engineering
  • Vehicle engineering
Technical specifications
Filter Property Value
Material PA
max. operating temperature 120 °C
Nominal width 7 mm
Outer diameter 11.5 mm
min. operating temperature -45 °C
Inner diameter 8.55 mm
Bending radius 20 mm
Colour gray
Logistics
Property Value
Country of origin DE
Customs tariff number 39173200
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
