83164175 | murrplastik
Protective hose, inside Ø 66 mm, outside Ø 78.8 mm, BR 200 mm, PA, black, 83164175
Unit Price (€ / mtr.)
32.2847 € *
Available: 0 mtr.
Leadtime: 1 Week **

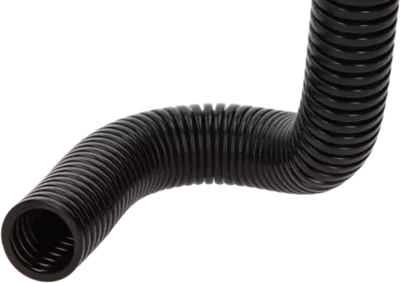

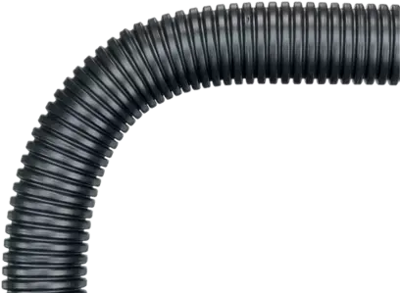

Cable protection conduit, 83164175, murrplastik
The cable protection conduit is made of specially modified polyamide 6. The material is halogen-, phosphor-, and cadmium-free. The affordable EWL-PAB cable protection conduit is characterised by its excellent self-extinguishing properties and high crush and impact resistance.
Applications
- Plant engineering
- Mechanical engineering
- Vehicle engineering
Technical specifications
| Colour | black | |
| Outer diameter | 78.8 mm | |
| Bending radius | 200 mm | |
| min. operating temperature | -45 °C | |
| Material | PA | |
| max. operating temperature | 120 °C | |
| Inner diameter | 66 mm | |
| Nominal width | 70 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 39173200 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
