83163854 | murrplastik

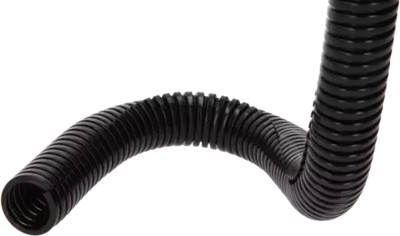

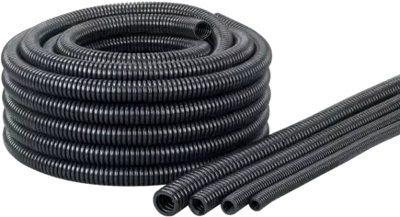

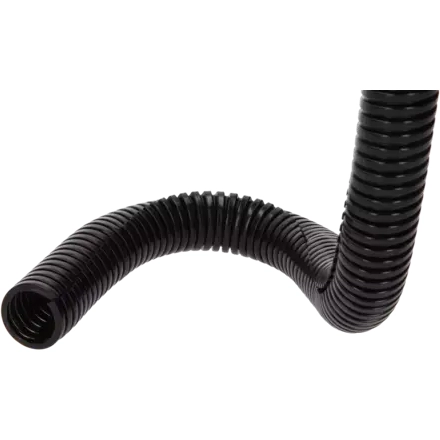

Protective hose, inside Ø 12.3 mm, outside Ø 15.8 mm, BR 38 mm, PA, black, 83163854
Unit Price (€ / mtr.)
2.4514 € *
Standard delivery time from the manufacturer is: 1 Week
Cable protection conduit, 83163854, murrplastik

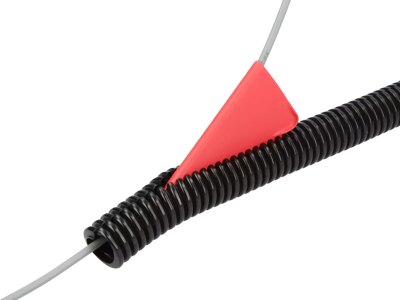

Flexible conduit for simple dynamic applications simple, lightweight version - for the installation of pre-assembled cables.
Features
- Medium mechanical load
- Resource-saving through recycled material
- For mechanical engineering and chemical plants
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Outer diameter | 15.8 mm | |
| Bending radius | 38 mm | |
| max. operating temperature | 120 °C | |
| min. operating temperature | -40 °C | |
| Material | PA | |
| Nominal width | 12 mm | |
| Inner diameter | 12.3 mm | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 39173200 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
