83163851 | murrplastik

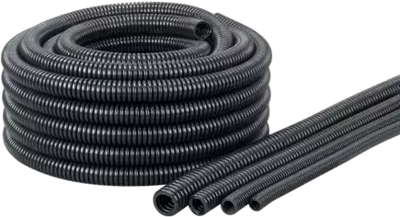

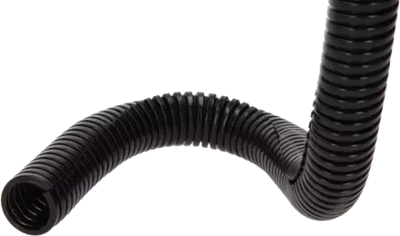

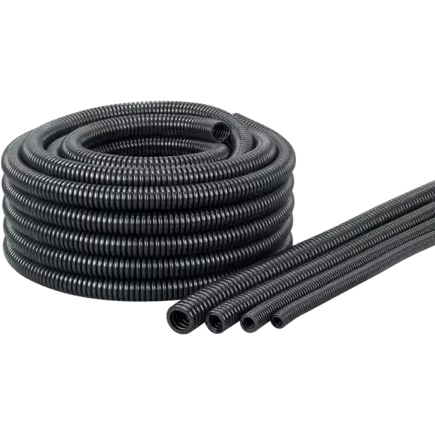

Protective hose, inside Ø 8.5 mm, outside Ø 11.4 mm, BR 24 mm, PA, black, 83163851
Unit Price (€ / mtr.)
1.4994 € *
Standard delivery time from the manufacturer is: 1 Week
Cable protection conduit, 83163851, murrplastik

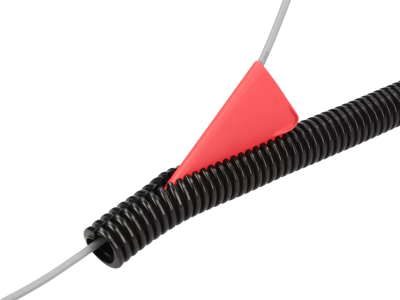

Flexible conduit for simple dynamic applications simple, lightweight version - for the installation of pre-assembled cables.
Features
- Medium mechanical load
- Resource-saving through recycled material
- For mechanical engineering and chemical plants
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | PA | |
| max. operating temperature | 120 °C | |
| Nominal width | 7 mm | |
| Outer diameter | 11.4 mm | |
| min. operating temperature | -40 °C | |
| Inner diameter | 8.5 mm | |
| Bending radius | 24 mm | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 39173200 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
