83581250 | murrplastik

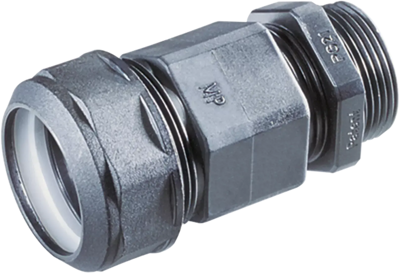

Straight conduit and cable gland, PG09, PA/NBR, IP65, black, (L) 53 mm, 83581250

Order No.: 47P0878
EAN: 4045005118134
MPN:
83581250
CSKV PG 09 SCHWARZ
Series: CSKV
83581250 murrplastik Hose Fittings
Image may differ
Unit Price (€ / pc.)
2.6894 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
134.47 € *
*incl. VAT plus shipping costs
**Subject to prior sale
50 pcs.
2.6894 €

Conduit and cable fitting, 83581250, murrplastik

The CSKV conduit and cable fitting is a combination of our proven WKK cable fitting and the EH conduit fitting. The fitting is made of specially modified polyamide. The material is halogen-, phosphor-, and cadmium-free. Clamping range: 4-8 mm.

Features

  • Tightness of IP65 for static and dynamic application
  • Integrated clamping ring ensures high tear-out strength
  • Optimum strain relief for the cable due to iris-shaped lamellae
Technical specifications
Length 53 mm
Thread size PG09
Material PA/NBR
min. operating temperature -40 °C
max. operating temperature 110 °C
Colour black
Degree of protection (IP) IP65
Logistics
Customs tariff number 39174000
Country of origin DE
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
