83565018 | murrplastik
90° hose screw fitting, M40, PA/POM, IP65, gray, (L) 82 mm, 83565018
Unit Price (€ / pc.)
6.8782 € *
Standard delivery time from the manufacturer is: 1 Week

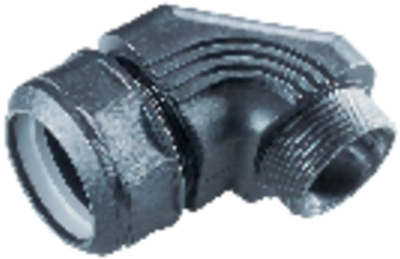

Conduit fitting, 83565018, murrplastik
The angled KW 90° conduit fittings with plastic threading are made from specially modified polyamide. The materials are halogen, phosphor and cadmium-free.
Features
- Tightness of IP 65 for static and dynamic application
- Integrated clamping ring ensures high tear-out strength
- Easy insertion of the cables through rounded inside bend
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 110 °C | |
| Length | 82 mm | |
| min. operating temperature | -40 °C | |
| Colour | gray | |
| Material | PA/POM | |
| Thread size | M40 | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39174000 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
