83562416 | murrplastik
Flange angle, M32, PA/CR, IP65, gray, (L) 90 mm, 83562416
Unit Price (€ / pc.)
9.6509 € *
Standard delivery time from the manufacturer is: 1 Week

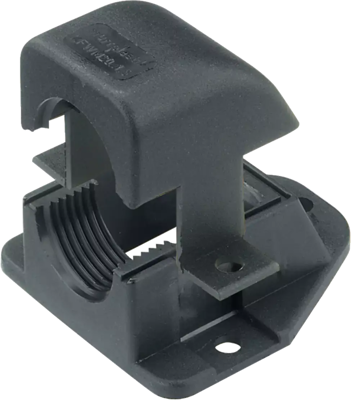

Bulkhead fitting, 83562416, murrplastik
The KFW bulkhead fitting is made of specially modified polyamide 6. The material is self-extinguishing, and halogen-, phosphor-, and cadmium-free. The KFW bulkhead fitting with thread is used with both cable and conduit fittings.
Features
- System divided in two for very quick and easy installation of cables
- Subsequent installation of cables is simplified by removable upper part
Technical specifications
| Length | 90 mm | |
| Thread size | M32 | |
| Material | PA/CR | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 110 °C | |
| Colour | gray | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Customs tariff number | 39174000 |
| Country of origin | DE |
Compliance
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
