83561850 | murrplastik
Flange angle, PA/CR, IP54, black, (L) 49 mm, 83561850
Unit Price (€ / pc.)
4.7719 € *
Standard delivery time from the manufacturer is: 1 Week

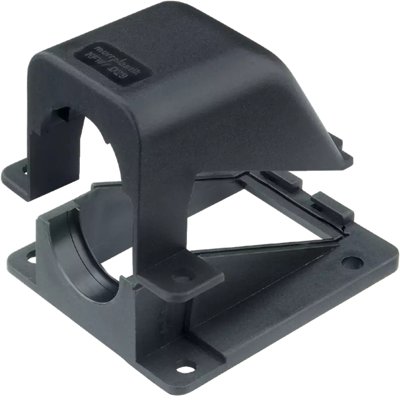

Bulkhead fitting, 83561850, murrplastik
The KFW bulkhead fitting is made of specially modified polyamide 6. The material is self-extinguishing, and halogen-, phosphor-, and cadmium-free. With the KFW/D bulkhead fitting, the cable protection conduit EW with standard corrugation can be directly mounted.
Features
- System divided in two for very quick and easy installation of cables
- Subsequent installation of cables is simplified by removable upper part
- No extra fittings are required
Technical specifications
| max. operating temperature | 110 °C | |
| min. operating temperature | -40 °C | |
| Colour | black | |
| Degree of protection (IP) | IP54 | |
| Length | 49 mm | |
| Material | PA/CR |
Download
Logistics
| Customs tariff number | 39174000 |
| Country of origin | DE |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
