83561614 | murrplastik

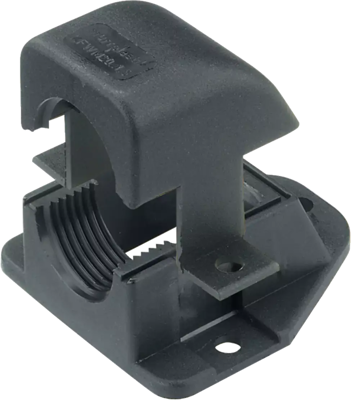

Flange angle, PG21, PA/CR, IP65, gray, (L) 69 mm, 83561614

Order No.: 47P0830
EAN: 4045005115041
MPN:
83561614
KFW 21 GRAU
Series: KFW
83561614 murrplastik Hose Fittings
Image may differ
Unit Price (€ / pc.)
8.092 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
80.92 € *
*incl. VAT plus shipping costs
**Subject to prior sale
10 pcs.
8.092 €

Bulkhead fitting, 83561614, murrplastik

The KFW bulkhead fitting is made of specially modified polyamide 6. The material is self-extinguishing, and halogen-, phosphor-, and cadmium-free. A bulkhead fitting is available with a metric or Pg thread. The KFW bulkhead fitting with thread is used with both cable and conduit fittings.

Features

  • System divided in two for very quick and easy installation of cables
  • Subsequent installation of cables is simplified by removable upper part
Technical specifications
max. operating temperature 110 °C
Thread size PG21
min. operating temperature -40 °C
Colour gray
Degree of protection (IP) IP65
Length 69 mm
Material PA/CR
Logistics
Customs tariff number 39174000
Country of origin DE
Compliance
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
