83521050 | murrplastik

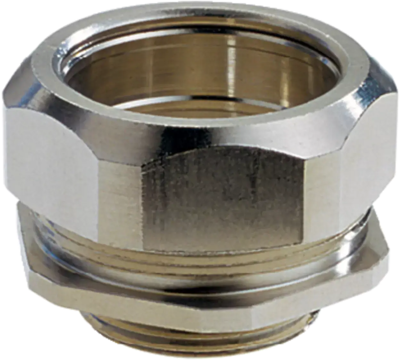

Straight hose screw fitting, M12, brass, nickel-plated, IP40, silver, (L) 22.5 mm, 83521050

Order No.: 47P0725
EAN: 4045005040732
MPN:
83521050
EH-EMV M12X1,5
Series: EH-EMV
83521050 murrplastik Hose Fittings Image 1
83521050 murrplastik Hose Fittings Image 2
Image may differ
Unit Price (€ / pc.)
5.9262 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
59.26 € *
*incl. VAT plus shipping costs
**Subject to prior sale
10 pcs.
5.9262 €

Metal fitting, 83521050, murrplastik

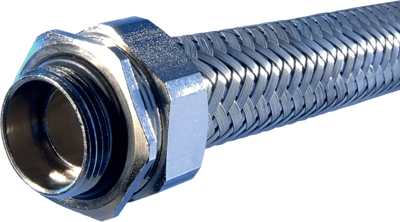

The EH-EMV metal fitting can be used together with the EMC cable protection conduit EW-PAP. The EH-EMV fitting is used to discharge sheath currents on the cable protection conduit safely and reliably.

Technical specifications
Colour silber
Thread size M12
Length 22.5 mm
Material Messing, vernickelt
max. operating temperature 140 °C
min. operating temperature -40 °C
Degree of protection (IP) IP40
Logistics
Country of origin DE
Customs tariff number 74198090
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
