83641212 | murrplastik

Tubing holders, P21, (L x W x H) 38 x 38 x 40 mm, PC, gray, for cable protection conduits type EL/ELS/EV, 83641212

Order No.: 47P1186
EAN: 4045005160348
MPN:
83641212
USH/D P21 GRAU
Series: USH/D
83641212 murrplastik Cable Management Accessories Image 1
83641212 murrplastik Cable Management Accessories Image 2
83641212 murrplastik Cable Management Accessories Image 3
Image may differ
Unit Price (€ / pc.)
5.4978 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
274.89 € *
*incl. VAT plus shipping costs
Subject to prior sale
50 pcs.
5.4978 €

Tube holder, 83641212, murrplastik

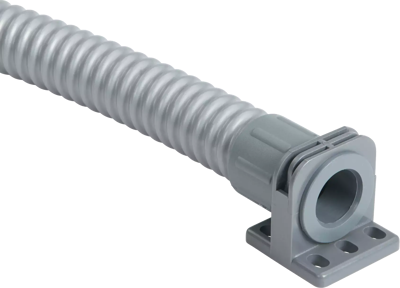

The USH/D holder with rotating part is made of specially modified polycarbonate. The material is halogen, phosphor and cadmium-free. The holder with rotating part is used for quick and easy holding of Murrplastik EL, ELS and EVK cable protection conduits.

Features

  • Various fastening possibilities
  • Conduits can still be rotated
  • Pre-assembly of lower part possible
Technical specifications
Filter Property Value
Material PC
Suitable for cable protection conduits type EL/ELS/EV
max. operating temperature 110 °C
Version P21
Width 38 mm
Height 40 mm
Product type tubing holders
min. operating temperature -40 °C
Colour gray
Length 38 mm
Logistics
Property Value
Country of origin DE
Customs tariff number 39174000
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
