83621862 | murrplastik

Universal holder, halogen free, (L x W x H) 55.5 x 15 x 56 mm, PA, black, for Murrflex corrugated pipe profiles, 83621862

Order No.: 47P1479
EAN: 4045005309303
MPN:
83621862
UHE P36 SCHWARZ
Series: UHE

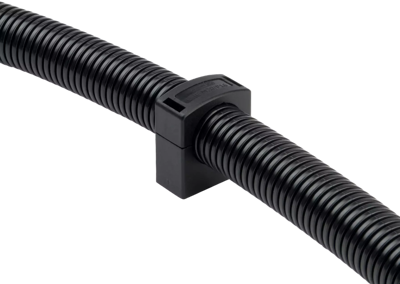

83621862 murrplastik Cable Management Accessories Image 1

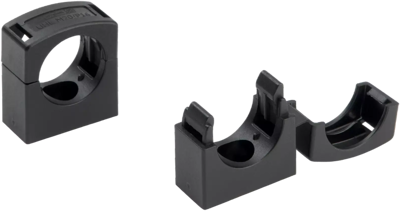

83621862 murrplastik Cable Management Accessories Image 2

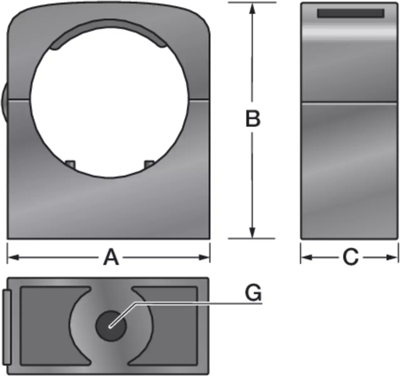

83621862 murrplastik Cable Management Accessories Image 3
Image may differ
Unit Price (€ / pc.)
2.5704 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
2.57 € *
Price list
Quantity
Price per unit*
1 pcs.
2.5704 €
10 pcs.
2.3443 €
50 pcs.
2.1896 €
100 pcs.
2.0468 €
*incl. VAT plus shipping costs
Subject to prior sale

Universal holder, 83621862, murrplastik

The UHE holder is a one-piece corrugated conduit holder in which the lid is connected to the holder by a film hinge. It is manufactured from a specially modified Polyamide. The material is halogen, phosphor and cadmium-free. The holder is used to fix cable protection conduits to equipment and machinery.

Features

  • Quick assembly thanks to single-hole fixing
  • Protective conduits only need to be snapped on, which makes them excellent for overhead installations
  • Optimum connection of conduit to holder thanks to double webs of holder
  • Optimized axial strain relief of the corrugated conduit achieved with integrated double webs
  • Highest degree of retention power
Technical specifications
Filter Property Value
Material PA
Suitable for Murrflex corrugated pipe profiles
max. operating temperature 110 °C
Version halogen free
Width 15 mm
Height 56 mm
Product type universal holder
min. operating temperature -40 °C
Colour black
Length 55.5 mm
Logistics
Property Value
Country of origin DE
Customs tariff number 39174000
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
