83621812 | murrplastik

Universal holder, halogen free, (L x W x H) 20.5 x 15 x 24.5 mm, PA, gray, for Murrflex corrugated pipe profiles, 83621812

Order No.: 47P1466
EAN: 4045005399076
MPN:
83621812
UHE P09 GRAU
Series: UHE
83621812 murrplastik Cable Management Accessories Image 1
83621812 murrplastik Cable Management Accessories Image 2
83621812 murrplastik Cable Management Accessories Image 3
Image may differ
Unit Price (€ / pc.)
0.8568 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
0.86 € *
Price list
Quantity
Price per unit*
1 pcs.
0.8568 €
10 pcs.
0.7854 €
50 pcs.
0.7378 €
100 pcs.
0.6783 €
*incl. VAT plus shipping costs
Subject to prior sale

Universal holder, 83621812, murrplastik

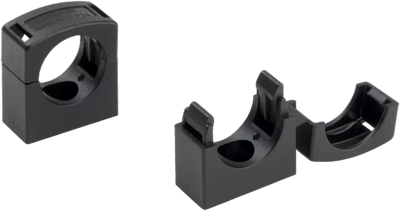

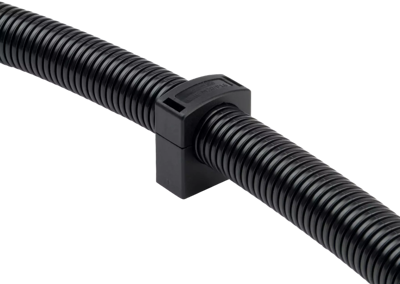

The UHE holder is a one-piece corrugated conduit holder in which the lid is connected to the holder by a film hinge. It is manufactured from a specially modified Polyamide. The material is halogen, phosphor and cadmium-free. The holder is used to fix cable protection conduits to equipment and machinery.

Features

  • Quick assembly thanks to single-hole fixing
  • Protective conduits only need to be snapped on, which makes them excellent for overhead installations
  • Optimum connection of conduit to holder thanks to double webs of holder
  • Optimized axial strain relief of the corrugated conduit achieved with integrated double webs
  • Highest degree of retention power

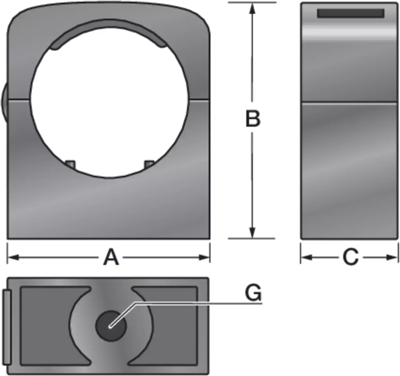

Technical specifications
Filter Property Value
Material PA
Suitable for Murrflex corrugated pipe profiles
max. operating temperature 110 °C
Version halogen free
Width 15 mm
Height 24.5 mm
Product type universal holder
min. operating temperature -40 °C
Colour gray
Length 20.5 mm
Logistics
Property Value
Country of origin DE
Customs tariff number 39174000
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
