83621412 | murrplastik

Yoke, halogen free, (L x W x H) 41 x 15.5 x 13 mm, PA, black, for universal holder, 83621412

Order No.: 47P1520
EAN: 4045005055132
MPN:
83621412
BL P21 SCHWARZ
Series: BL

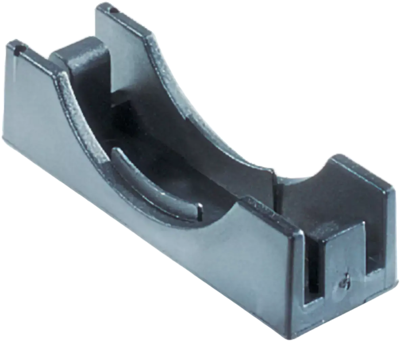

83621412 murrplastik Cable Management Accessories Image 1
83621412 murrplastik Cable Management Accessories Image 2
Image may differ
Unit Price (€ / pc.)
0.4641 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
0.46 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4641 €
10 pcs.
0.4165 €
50 pcs.
0.3927 €
100 pcs.
0.3689 €
*incl. VAT plus shipping costs
Subject to prior sale

Bracket, 83621412, murrplastik

The BL clamping bracket can be used for types UH and UHG and is made from specially modified polyamide. The material is halogen, phosphor and cadmium-free. The bracket can be used to achieve additional support of the conduit clamp for high loads.

Technical specifications
Filter Property Value
Material PA
Suitable for universal holder
max. operating temperature 110 °C
Version halogen free
Width 15.5 mm
Height 13 mm
Product type yoke
min. operating temperature -40 °C
Colour black
Length 41 mm
Logistics
Property Value
Country of origin DE
Customs tariff number 39174000
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
