MBT 168055 GR | Multi-Box
ABS enclosure, (L x W x H) 160 x 80 x 55 mm, light gray (RAL 7035), IP65, MBT 168055 GR
Unit Price (€ / pc.)
22.5029 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
22.50 € *
Price list
Quantity
Price per unit*
1 pcs.
22.5029 €
10 pcs.
20.2419 €
50 pcs.
18.2189 €
100 pcs.
16.4101 €
*incl. VAT plus shipping costs
**Subject to prior sale

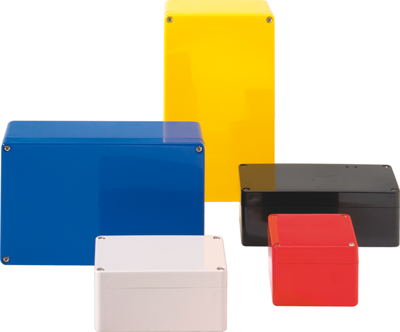

Plastic enclosures, type Multi-Box Multi-Colour.
Made of ABS, cover with neoprene seal and captive screws made of stainless steel. The screw channels are arranged in a recess above the sealing area; Degree of protection to EN 60529: IP 65. Thermal resistance:-40 to +80 °C.
Size 160 x 80 x 55 mm, type MBT 168055.
Technical attributes (type, color): MBT 168055GR, gray (RAL 7035)
Technical specifications
| Width | 80 mm | |
| Colour | light gray | |
| Height | 55 mm | |
| Length | 160 mm | |
| Material | ABS | |
| RAL number | 7035 | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85472000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
