MBT 080805 SW | Multi-Box
ABS enclosure, (L x W x H) 80 x 80 x 55 mm, black (RAL 9005), IP65, MBT 080805 SW
Unit Price (€ / pc.)
18.2784 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
18.28 € *
Price list
Quantity
Price per unit*
1 pcs.
18.2784 €
10 pcs.
16.0769 €
50 pcs.
14.9821 €
150 pcs.
14.3276 €
500 pcs.
13.6017 €
*incl. VAT plus shipping costs
**Subject to prior sale

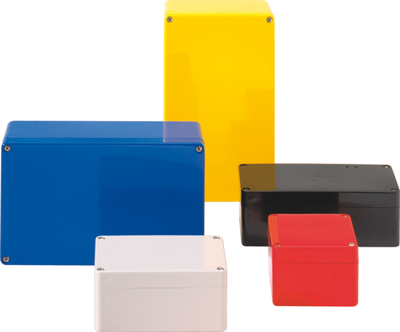

Plastic enclosures, type Multi-Box Multi-Colour.
Made of ABS, cover with neoprene seal and captive screws made of stainless steel. The screw channels are arranged in a recess above the sealing area; Degree of protection to EN 60529: IP 65. Thermal resistance:-40 to +80 °C.
Size 80 x 80 x 55 mm, type MBT 080805.
Technical attributes (type, color): MBT 080805SW, black (RAL 9005)
Technical specifications
| Width | 80 mm | |
| Colour | black | |
| Height | 55 mm | |
| Length | 80 mm | |
| Material | ABS | |
| RAL number | 9005 | |
| Degree of protection (IP) | IP65 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85472000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
