DRE4X2NI-N2V0-1,0M | MTC
Housing seal, conductive
Active
Product by MTC at Bürklin Elektronik
Conductive housing seals, type MTC D.
With non-conductive adhesive tape to UL 94 V-0 for EMC applications.
Housing seal with rectangular profile, type DRE../DQU.

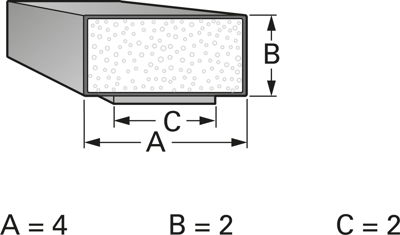

Technical attributes (type, surface material, dimensions. Width (A), height (B), adhesive tape width (C/D)): DRE4x2NI-N2V0-1.0m, Cu/Ni, A 4.0, B 2.0, C 2.0 mm
| Version | enclosure seal, conductive | |
| Width | 4 mm | |
| Height | 2 mm |
| Country of origin | KR |
| Customs tariff number | 59119099 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
