DRE12,7X6,4NI-N5V0-1,0M | MTC
Housing seal, conductive
Active
Product by MTC at Bürklin Elektronik
Conductive housing seals, type MTC D.
With non-conductive adhesive tape to UL 94 V-0 for EMC applications.
Housing seal with rectangular profile, type DRE../DQU.

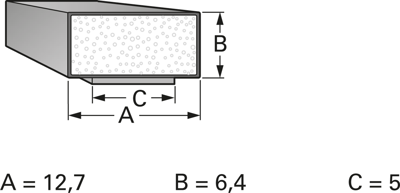

Technical attributes (type, surface material, dimensions. Width (A), height (B), adhesive tape width (C/D)): DRE12.7x6.4NI-N5V0-1.0m, Cu/Ni, A 12.7, B 6.4, C 5.0 mm
| Version | enclosure seal, conductive | |
| Width | 12.7 mm | |
| Height | 6.4 mm |
| Country of origin | KR |
| Customs tariff number | 59119099 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
