DHR6,4X3,6AL-N3,2V0-1,0M | MTC
Housing seal, conductive, round, aluminum, (W x H) 6.4 x 3.6 mm, DHR6,4X3,6AL-N3,2V0-1,0M
Order No.: 49H838
EAN: 4099889562415
MPN:
DHR6,4X3,6AL-N3,2V0-1,0M
Unit Price (€ / pc.)
2.5228 € *
Available: 170 pcs.
Total Price:
2.52 € *
Price list
Quantity
Price per unit*
1 pcs.
2.5228 €
25 pcs.
2.2372 €
100 pcs.
2.0349 €
250 pcs.
1.8088 €
1000 pcs.
1.6660 €
*incl. VAT plus shipping costs
Subject to prior sale
Conductive housing seal, DHR6,4X3,6AL-N3,2V0-1,0M, MTC
With non-conductive adhesive tape to UL 94 V-0 for EMC applications.

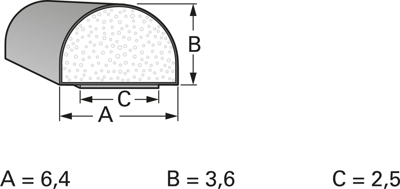

Housing seal with semicircular profile, type DHR.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | housing seal | |
| Version | conductive | |
| Design | round | |
| Material | aluminum | |
| Width | 6.4 mm | |
| Height | 3.6 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | KR |
| Customs tariff number | 59119099 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
