001-3-014-3-B1STH-XT0 | MPE-GARRY
IC sockets with capacitor, 14 pole, pitch 2.54 mm (7.62 mm), copper alloy, gold plated for DIL-IC, 001-3-014-3-B1STH-XT0
Unit Price (€ / pc.)
4.6886 € *
Available: 113 pcs.
Total Price:
4.69 € *
Price list
Quantity
Price per unit*
1 pcs.
4.6886 €
10 pcs.
3.3439 €
100 pcs.
2.8560 €
500 pcs.
2.4871 €
1000 pcs.
2.2610 €
*incl. VAT plus shipping costs
Subject to prior sale

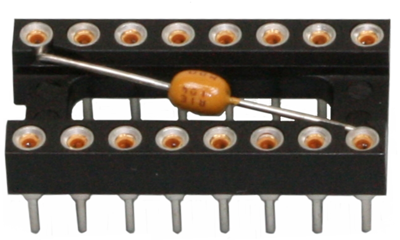

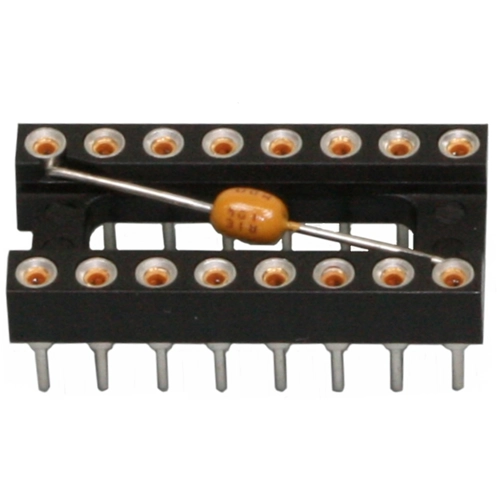

IC sockets with capacitor, type MPE-GARRY MPQ.
With multilayer ceramic capacitor (0.1 µF); Rated voltage: 100 VRMS/150 VDC. Rated current: 1.0 A. Insulating body: thermoplastic to UL 94 V-0. Contacts: brass/beryllium copper gold-plated. Operating temperatures: –55 to +125 °C.

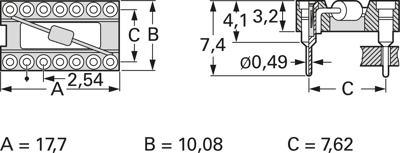

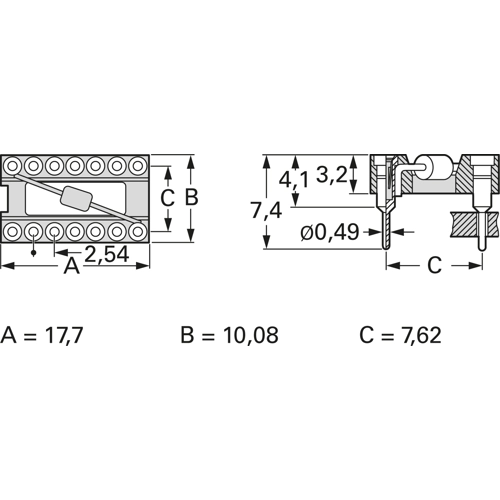

Technical attributes (number of poles, dimensions): 001-3-014-3-B1STH-XT0, 14-pole, A 17.70, B 10.08, C 7.62 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 3 A | |
| Contact material | copper alloy, gold plated | |
| max. operating temperature | 125 °C | |
| Version | IC sockets with capacitor | |
| Grid | 2.54 mm | |
| Width | 10.1 mm | |
| Material | thermoplastic | |
| Pin number | 14 pole | |
| Height | 3.2 mm | |
| Rated voltage | 150 V | |
| min. operating temperature | -55 °C | |
| Suitable for | DIL-IC | |
| Length | 17.7 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
| Original Packaging | Bar with 29 pieces |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
