001-4-020-3-B1STH-XT0 | MPE-GARRY

IC sockets with capacitor, 20 pole, pitch 2.54 mm (7.62 mm), copper alloy, gold plated for DIL-IC

Order No.: 14B515
EAN: 4099879023391
MPN:
001-4-020-3-B1STH-XT0
Series: MPQ
MPE-GARRY
default L
front L
Image may differ
Unit Price (€ / pc.)
1.4875 € *
Available: 180 pcs.
Leadtime: On Request **
Total Price:
1.49 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1.4875 €

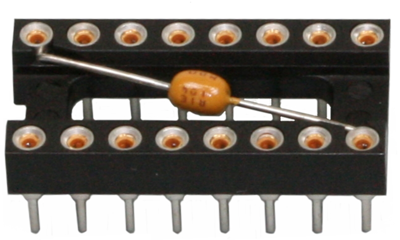

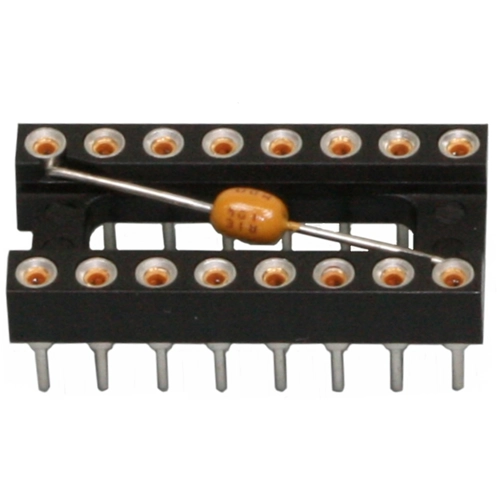

IC sockets with capacitor, type MPE-GARRY MPQ.

With multilayer ceramic capacitor (0.1 µF); Rated voltage: 100 VRMS/150 VDC. Rated current: 1.0 A. Insulating body: thermoplastic to UL 94 V-0. Contacts: brass/beryllium copper gold-plated. Operating temperatures: –55 to +125 °C.

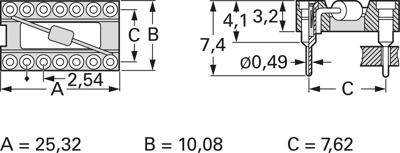

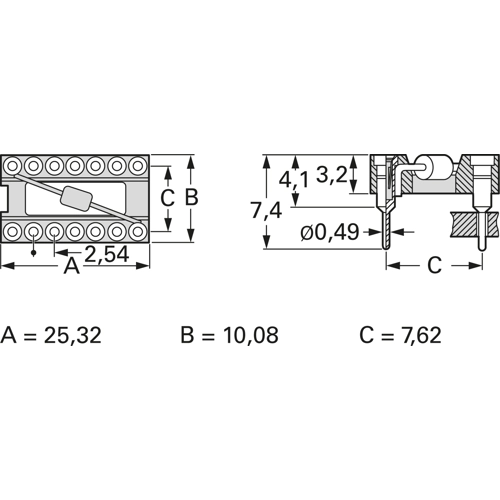

Technical attributes (number of poles, dimensions): 001-4-020-3-B1STH-XT0, 20-pole, A 25.32, B 10.08, C 7.62 mm

Technical specifications
Version IC sockets with capacitor
Width 10.08 mm
Suitable for DIL-IC
Height 3.2 mm
Contact material copper alloy, gold plated
Length 25.32 mm
Material thermoplastic
max. operating temperature 125 °C
min. operating temperature -55 °C
Rated voltage 150 V
Rated current 3 A
Pin number 20 pole
Grid 2.54 mm
Logistics
Country of origin DE
Customs tariff number 85366990
Original Packaging Bar with 20 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
