001-3-008-3-B1STH-XT0 | MPE-GARRY
IC sockets with capacitor, 8 pole, pitch 2.54 mm (7.62 mm), copper alloy, gold plated for DIL-IC, 001-3-008-3-B1STH-XT0
Unit Price (€ / pc.)
2.1063 € *
Standard delivery time from the manufacturer is: 5 Weeks

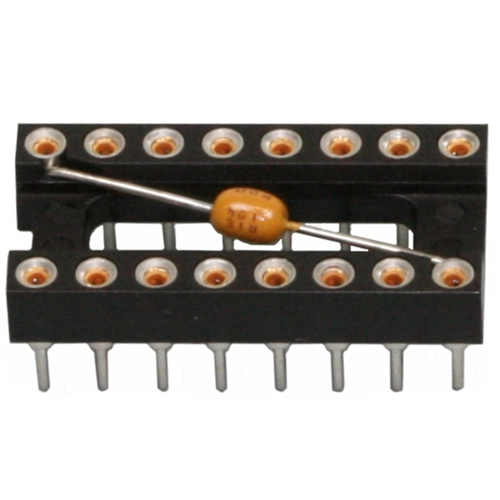

IC sockets with capacitor, type MPE-GARRY MPQ.
With multilayer ceramic capacitor (0.1 µF); Rated voltage: 100 VRMS/150 VDC. Rated current: 1.0 A. Insulating body: thermoplastic to UL 94 V-0. Contacts: brass/beryllium copper gold-plated. Operating temperatures: –55 to +125 °C.

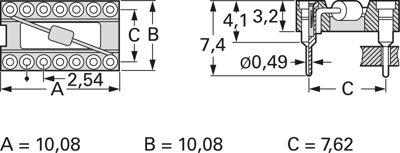

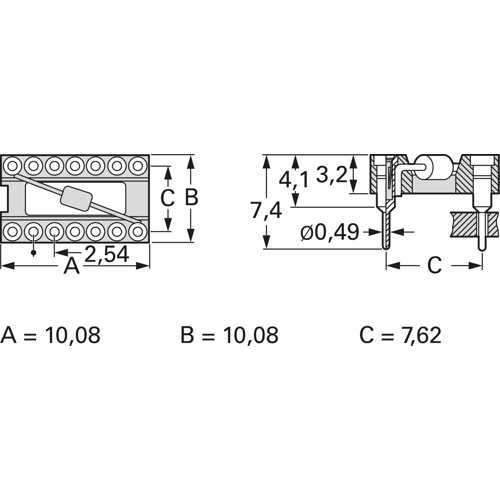

Technical attributes (number of poles, dimensions): 001-3-008-3-B1STH-XT0, 8-pole, A 10.08, B 10.08, C 7.62 mm
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact material | copper alloy, gold plated | |
| Grid | 2.54 mm | |
| Pin number | 8 pole | |
| Height | 3.2 mm | |
| min. operating temperature | -55 °C | |
| Rated current | 3 A | |
| max. operating temperature | 125 °C | |
| Version | IC sockets with capacitor | |
| Material | thermoplastic | |
| Rated voltage | 150 V | |
| Width | 10.08 mm | |
| Suitable for | DIL-IC | |
| Length | 10.08 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
| Original Packaging | Bar with 51 pieces |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
