001-2-040-6-A1STH-XT0 | MPE-GARRY

IC socket, 40 pole, pitch 2.54 mm (15.24 mm), copper alloy, tin plated for DIL-IC, 001-2-040-6-A1STH-XT0

Order No.: 14B174
EAN: 4099879023001
MPN:
001-2-040-6-A1STH-XT0
Series: 001 xxx A1STH

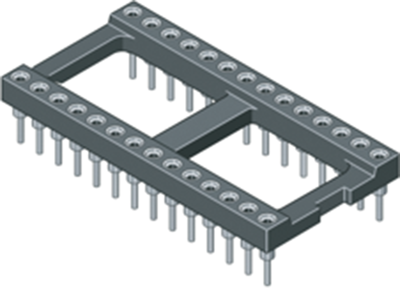

001-2-040-6-A1STH-XT0 MPE-GARRY Semiconductor Sockets, Holders Image 1
001-2-040-6-A1STH-XT0 MPE-GARRY Semiconductor Sockets, Holders Image 2
Image may differ
Unit Price (€ / pc.)
3.5581 € *
Available: 53 pcs.
Total Price:
3.56 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
3.5581 €

Flat IC precision sockets, type MPE-GARRY Serie 001.

Insulating body: thermoplastic to UL 94 V-0. Contact material: brass/beryllium copper. Rated current: 1.0 A. Rated voltage: 100 VRMS/150 VDC. Operating temperatures: –55 to +125 °C.

With tinned solder pins, type MP STG A.

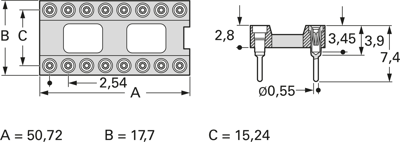

Technical attributes (number of poles, dimensions): 001-2-040-6-A1STH-XT0, 40-pole, A 50.72, B 17.70, C 15.24 mm

Technical specifications
max. operating temperature 125 °C
Rated voltage 150 V
Grid 2.54 mm
Height 2.8 mm
min. operating temperature -55 °C
Material thermoplastic
Suitable for DIL-IC
Contact material copper alloy, tin plated
Version IC socket
Pin number 40 pole
Rated current 3 A
Length 50.8 mm
Width 17.7 mm
Logistics
Country of origin DE
Customs tariff number 85366990
Original Packaging Bar with 10 pieces
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
