001-2-018-3-A1STH-XT0 | MPE-GARRY

IC socket, 18 pole, pitch 2.54 mm (7.62 mm), copper alloy, tin plated for DIL-IC, 001-2-018-3-A1STH-XT0

Order No.: 14B126
EAN: 4099879022899
MPN:
001-2-018-3-A1STH-XT0
Series: 001 xxx A1STH

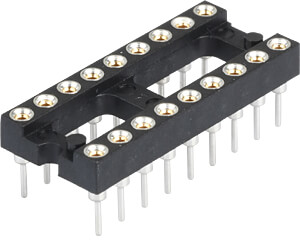

001-2-018-3-A1STH-XT0 MPE-GARRY Semiconductor Sockets, Holders Image 1

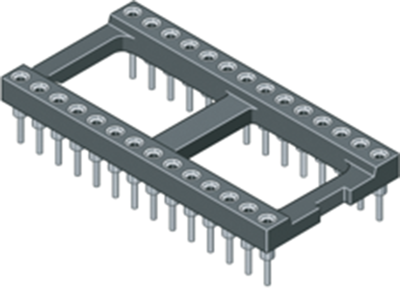

001-2-018-3-A1STH-XT0 MPE-GARRY Semiconductor Sockets, Holders Image 2
001-2-018-3-A1STH-XT0 MPE-GARRY Semiconductor Sockets, Holders Image 3
Image may differ
Unit Price (€ / pc.)
1.2376 € *
Available: 2,735 pcs.
Total Price:
3.71 € *
*incl. VAT plus shipping costs
Subject to prior sale
3 pcs.
1.2376 €

Flat IC precision sockets, type MPE-GARRY Serie 001.

Insulating body: thermoplastic to UL 94 V-0. Contact material: brass/beryllium copper. Rated current: 1.0 A. Rated voltage: 100 VRMS/150 VDC. Operating temperatures: –55 to +125 °C.

With tinned solder pins, type MP STG A.

Technical attributes (number of poles, dimensions): 001-2-018-3-A1STH-XT0, 18-pole, A 22.78, B 10.08, C 7.62 mm

Technical specifications
max. operating temperature 125 °C
Rated voltage 150 V
Grid 2.54 mm
Height 3.2 mm
min. operating temperature -55 °C
Material thermoplastic
Suitable for DIL-IC
Contact material copper alloy, tin plated
Version IC socket
Pin number 18 pole
Rated current 3 A
Length 22.78 mm
Width 10.08 mm
Logistics
Country of origin DE
Customs tariff number 85366990
Original Packaging Bar with 22 pieces
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
