MJ-032 BLUE | Miyama Electric
Ultra-fine test probe, blue, max. 2 mm, L 55.5 mm, solder connection, MJ-032 BLUE
Extra fine clamp-type probes, type MJ 032.
With contact hooks for reliable clamping to components in high density surroundings, for example ICs, etc. Test lead is connected by crimping or soldering after removing the clip button; Connection area: max. 2.0 mm. Conductor cross-section: max. 1.5 mm². Rated voltage: 30 VAC/60 VDC. Rated current: 1.0 A.
Type: MJ 032, blue
Connection | solder connection | |
Rated Voltage | 30 VAC/60 VDC | |
Rated current | 1 A | |
Colour | blue | |
clamping force range | max. 2 mm | |

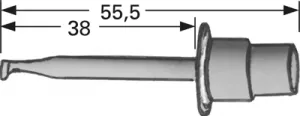

Length | 55.5 mm |
Country of origin | JP |
Customs tariff number | 85369010 |
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | Yes |
