Magn. linear Click MIKROE-3274
Unit Price (€ / pc.)
32.5346 € *
Standard delivery time from the manufacturer is: 4 Weeks
Magnetic linear Click, MIKROE-3274, MikroElektronika

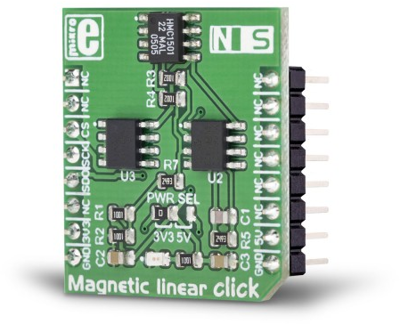

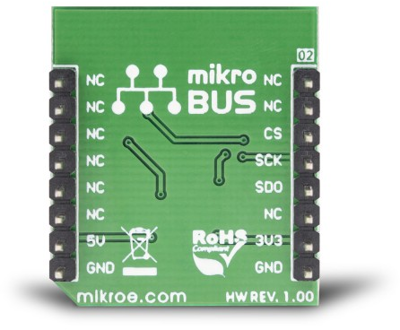

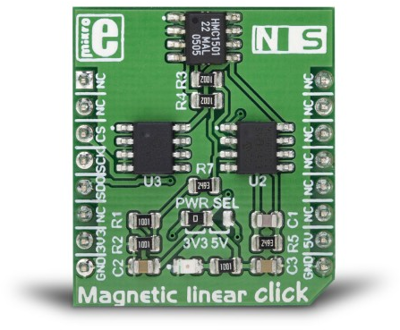

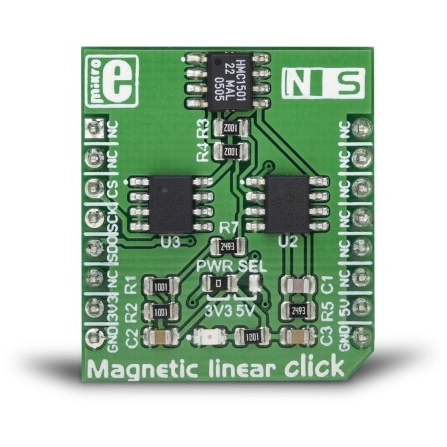

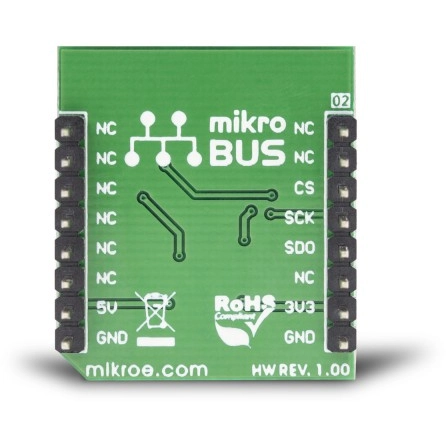

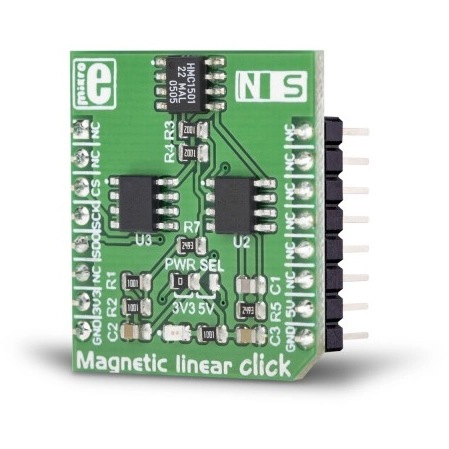

Magnetic linear Click is a very accurate position sensing Click board which utilizes the HMC1501, a magnetic field displacement sensor IC. This integrated sensor uses a single saturated-mode Wheatstone bridge which consists of four magneto-resistive elements. The precision of up to 0.07° in the angular range of ±45° can be easily achieved using the Magnetic linear Click, making it far more accurate than the commonly used Hall-effect sensors.

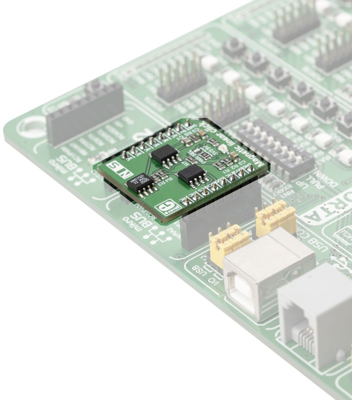

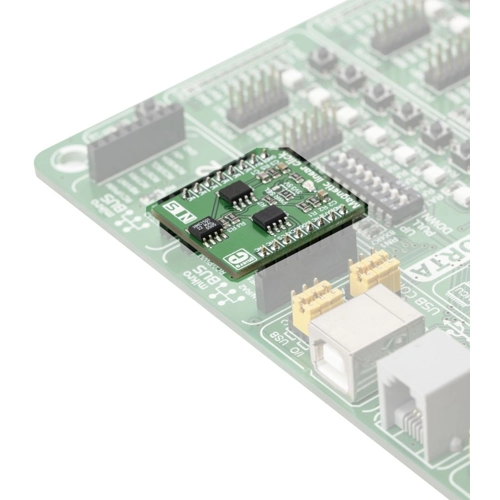

The Click board comes as a fully tested and approved prototype, making it a reliable device ready to use on the development board.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | Magnetic Linear Click | |
| Function | magnetic field sensor | |
| Product type | development board | |
| MPU interface | SPI |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84733020 |
| Country of origin | RS |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
